　DUX-205 4K/HD Down converter
　DUX-206 HD/4K Up converter
　High-quality, low-delay, 4K structure conversion,
　Colorimetry conversion

OVERVIEW

These units are 4K down converter and 4K up converter units to mount on DUX chassis.
The DUX chassis is available from three kinds of follows by customers use.

● 12G-SDI support
● Shortly delay conversion (Fast mode)
● HDR / SDR conversion
● BT.2100 HLG, S-Log3 support
● BT.709 / BT.2020 conversion
● 4K SQD / 2SI conversion, Level-A / B conversion
● HD Bypass mode

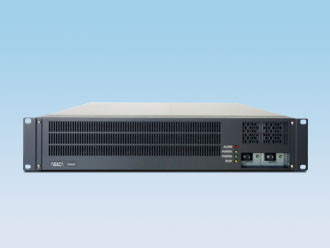

DUX chassis

〇FRX-22F 2U full chassis    Maximum mount  10units
○FRX-12F 1U full chassis    Maximum mount  3units
○FRX-12H 1U half chassis   Maximum mount  1unit
○FRX-12D 1U half chassis   Maximum mount  1unit(DC12V power input)

FEATURES

○12G / 3G / HD-SDI support
○59.94 / 50 / 29.97 / 23.98Hz video frame
○SQD / 2SI, Level-A / B support
○HDR / SDR, BT.709 / 2020 conversion
○BT.2100 HLG, S-Log3 support
○”4K to 4K” data structure conversion
○12G / HD-SDI 1 in 4 distribution output
○Video quality correction function
○Video enhance function
○16 channels Embedded audio
○ATC-LTC / ATC-VITC support
○External 525BB / 625BB / Tri-SYNC
○Output phase setting for external reference
○Video/Audio test signal output mode
○Web remote control
○Alarm output, SNMP support

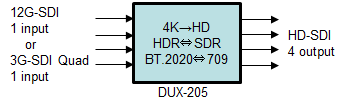

DUX-205 4K / HD Down converter

○3840×2160→1920×1080, 4096×2160→1920×1080 down conversion, 4 outputs
○3840×2160→3840×2160, 4096×2160→4096×2160 data structure conversion
　 （Square division⇔2-Sample interleave division, Level A⇔Level B）







 Down Converter

OUT
IN                         		 1920×1080
/59.94i		 1920×1080
/59.94p		 1920×1080
/50i		 1920×1080
/50p		 1920×1080
/29.97psf		 1920×1080
/23.98psf
3840×2160/59.94p ○ TBD ― ― ― ―
4096×2160/59.94p ○ TBD ― ― ― ―
3840×2160/50p ― ― ○ TBD ― ―
4096×2160/50p ― ― ○ TBD ― ―
3840×2160/29.97p ― ― ― ― ○ ―
4096×2160/29.97p ― ― ― ― ○ ―
3840×2160/23.98p ― ― ― ― ― ○
4096×2160/23.98p ― ― ― ― ― ○

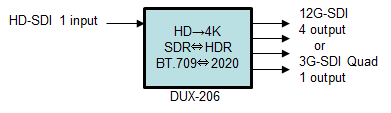

DUX-206 HD / 4K Up converter

○ 1920×1080→3840×2160 up conversion
○ 1920×1080→1920×1080 4 distribution outputs







 4K up converter unit

OUT
IN                         		 3840×2160
/59.94p		 3840×2160
/50p		 3840×2160
/29.97p		 3840×2160
/23.98p
1920×1080/59.94i ○ ― ― ―
1920×1080/59.94p TBD ― ― ―
1920×1080/50i ― ○ ― ―
1920×1080/50p ― TBD ― ―
1920×1080/29.97PsF ― ― ○ ―
1920×1080/23.98PsF ― ― ― ○

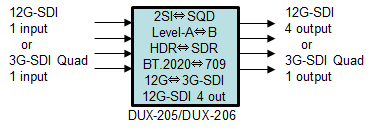

■”4K to 4K” Data structure conversion mode








■HD Bypass mode

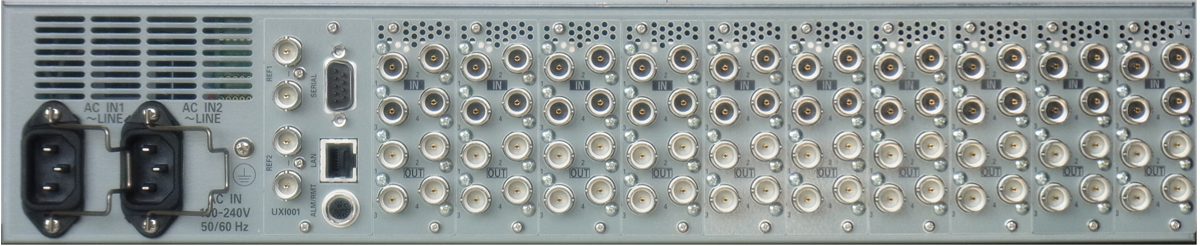

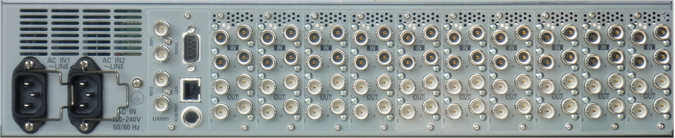

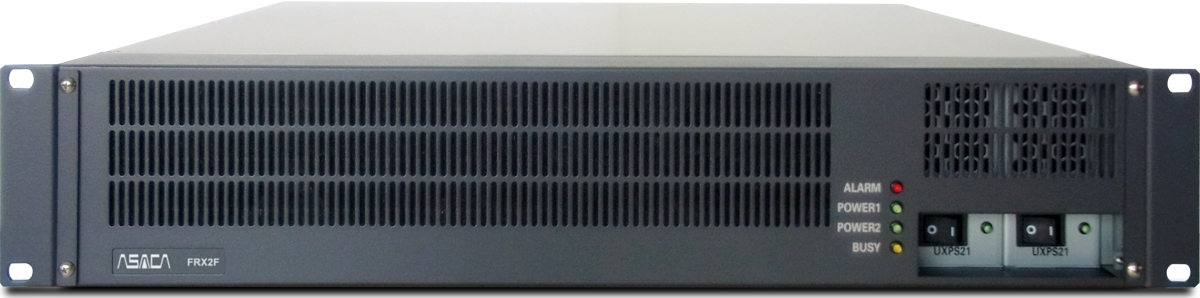

FRX-23F 2U full chassis

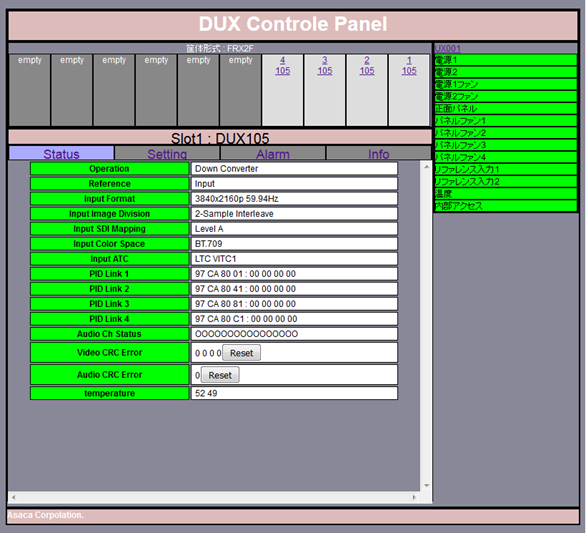

WEB remote

Specifications

DUX-205 4K→HDTV down converter
Input 3G-SDI (1.5G-SDI)×4　or 12G-SDI×1　1 input BNC 75Ω
Output 1.5G-SDI　4 output BNC 75Ω
Input format 3840/4096×2160　59.94p/50p/29.97p/23.98p
Output format 1920×1080　59.94i/50i/29.97p（PsF）/23.98p（PsF）
Sampling structure Square/2-Sample interleave division, LevelA/B, 4:2:2 10bit
DUX-206 HDTV→4K up converter
Input 1.5G-SDI　1 input BNC 75Ω
Output 3G-SDI×4 or 12G-SDI×1 1 output BNC 75Ω
Input format 1920×1080　59.94i/50i/29.97p（PsF）/23.98p（PsF）
Output format 3840×2160　59.94p/50p/29.97p/23.98p
Sampling structure Square/2-Sample interleave division, LevelA/B, 4:2:2 10bit
Common specifications
Video quality parameter Converted video quality parameter adjustable
Reference input 525BB/525BB（10 field ID）/Tri-sync　2 input BNC 75Ω loop through
Timecode ATC-timecode （LTC/VITC）
Embedded Audio 16 channel （with mapping）
Color space Rec. ITU-R BT709/BT2020 color space conversion
at 2U full chassis
Structure 2U console
Size 430mm(W)×88mm(H)×450mm(D)
Constitution   FRX23F　2U full chassis ×1　（redundant power supply）
UXC001　control module ×1
down converter and up converter common use slot ×10
Power supply AC100V～240V±10%（50Hz/60Hz）
Power consumption Max. 350VA
Temperature environment 5℃～40℃

*Design and specifications are subject to change without notice.
*Names mentioned are trademarks or registered trademarks of their respective manufacturers
